Ceiling Grid Installation Tips: Installing a Suspended Ceiling Grid

Installing a suspended ceiling grid can transform a room. It hides wiring, pipes, and ductwork while giving a clean, professional look. If you are planning to upgrade your space, knowing the right steps is key. I’ll walk you through the process with clear, simple instructions. This guide is perfect for local businesses and property owners in Shrewsbury and Shropshire who want a reliable ceiling solution.

Essential Ceiling Grid Installation Tips

Before you start, gather all the materials and tools you need. This includes the ceiling grid kit, a laser level or spirit level, a tape measure, a drill, screws, and safety gear like goggles and gloves. Planning is crucial. Measure your room carefully to determine how many grid components you will need.

When you begin, always check the ceiling height. Suspended ceilings usually hang about 100mm to 150mm below the original ceiling. This space allows for lighting fixtures and ventilation. Make sure the height works with your room’s design and any existing installations.

Next, install the wall angle or perimeter trim. This metal strip runs along the walls and supports the grid edges. Use a spirit level to keep it straight. Secure it with screws or nails every 300mm. This frame will hold the rest of the grid in place.

Wall angle installed along the room perimeter

How Should You Mark the Grid on the Ceiling for Installation?

Marking the ceiling correctly is one of the most important steps. Start by finding the centre of the room. Use a tape measure to find the midpoint of each wall and snap chalk lines between opposite walls. The intersection is your centre point.

From this centre, mark lines every 600mm or 1200mm depending on your tile size. These lines will guide where the main runners and cross tees go. Use a laser level if you have one. It makes marking straight lines easier and more accurate.

Double-check your measurements before drilling or fixing anything. Mistakes here can cause the grid to be uneven or tiles not to fit properly. Take your time and be precise.

Installing the Main Runners and Cross Tees

Once the perimeter and markings are ready, you can install the main runners. These are the long metal strips that run parallel to the longest wall. Hang them from the ceiling joists using wire hangers or rods. The hangers should be spaced about 1200mm apart.

Attach the cross tees perpendicular to the main runners. They create the grid pattern and support the ceiling tiles. Cross tees usually snap into the main runners. Make sure all connections are secure and the grid is level.

If you need to cut any pieces, use a metal snip or a fine-toothed saw. Wear gloves to protect your hands. Keep the cuts clean so the pieces fit snugly.

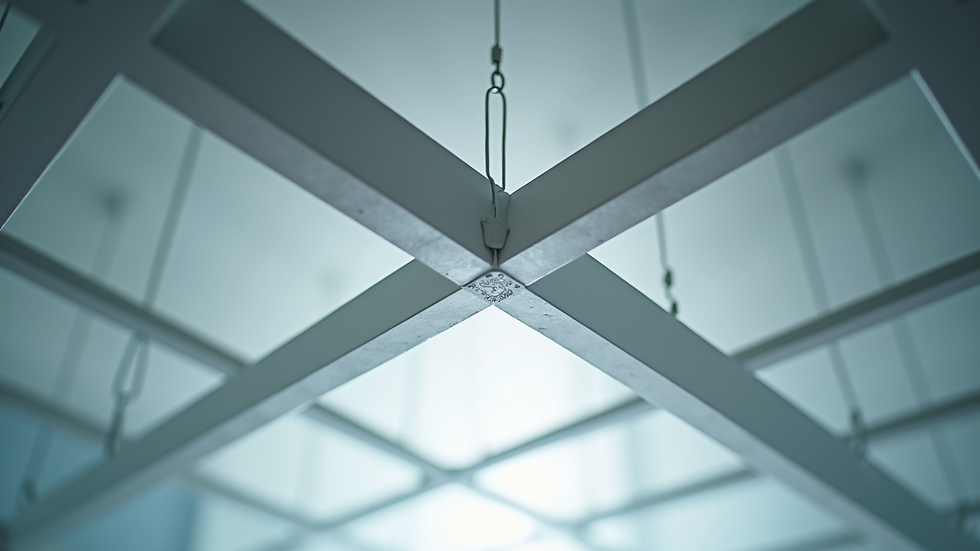

Suspended ceiling grid framework installed

Installing Ceiling Tiles and Finishing Touches

After the grid is fully installed and level, it’s time to place the ceiling tiles. Lift each tile at an angle and fit it into the grid opening. Lower it gently so it rests on the grid flanges. Tiles should fit snugly but not be forced.

If you have lighting fixtures or vents, cut the tiles to size before installation. Use a sharp utility knife and a straight edge for clean cuts. Some tiles come with pre-cut holes for lights, which makes this easier.

Once all tiles are in place, inspect the ceiling for any gaps or uneven sections. Adjust the grid or tiles as needed. Clean up any dust or debris from the installation.

Why Choose Professional Help for Your Ceiling Grid Installation?

While installing a suspended ceiling grid can be a DIY project, it requires precision and care. Mistakes can lead to uneven tiles, poor support, or damage to the ceiling. For local businesses and property owners in Shrewsbury and Shropshire, hiring a specialist ensures the job is done right the first time.

Professionals like PBE Interiors have the experience and tools to handle projects of all sizes. They can advise on the best materials and design for your space. Plus, they guarantee a neat finish that lasts.

If you want to learn more about how to install a suspended ceiling grid, check out the detailed guide on PBE Interiors’ website. It covers everything from planning to finishing touches.

Getting Started on Your Ceiling Project Today

Now that you know the basics, you can plan your suspended ceiling installation with confidence. Remember to measure carefully, mark precisely, and install the grid securely. Whether you do it yourself or hire a pro, a suspended ceiling grid adds value and style to your property.

If you are in Shrewsbury or Shropshire and want a trusted partner for your ceiling or stud wall projects, consider reaching out to PBE Interiors. They offer reliable service and expert advice tailored to your needs.

Good luck with your ceiling project!
